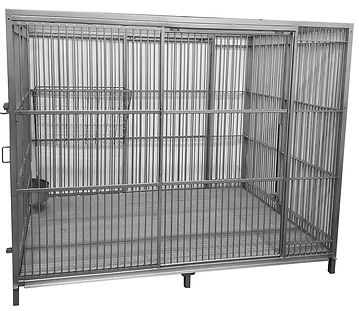

Modular Fixed Pen Catalog #49298

  • All 304 Stainless-Steel construction.

  • Approximate overall size of Units is 78” wide x 96-1/2” lg. x 80” tall.

  • Main Frame components constructed of SS 1-1/2’ X 1-1/2’ Box Tube.

  • Unit is a modular Fixed Cage and is manually set up or broken down.

  • 3 Pens per Room with a total of 4 Rooms.

  • Units will pair with other like pen units, pairing mechanism provided.

  • Full Height Rear Wall Panels have vertical rods on ~2” Centers.

  • The front of the cage has 3/8” diameter rods on ~2” centers including Man Door.

  • The Hinged Man Door has a heavy-duty latch and provisions for a lock.

  • Removable SS Feed Box provided.

  • Horizontal Sliding Side Wall Panels provided to allow pairing to neighboring Pens.

  • Center Pen will share divider panels with Right-Hand and Left-Hand Pens.

  • Full height Side Wall Panels to have vertical rods on ~2” Centers.

  • Removable floor grate sections are Aqua Grate Pedestrian Grating #T1210 OR Wire.

  • Adjustable Height Waterline provided with quick disconnect and drinking valve.

  • Waterline can be attached at front or back of Pen.

  • Fence Guard at front of Pens to prevent animals from crawling under Pens.

  • Design can be modified to best suit your needs.

  • Units are Bead Blasted to a Matte Finish.
